The Department of Energy’s 2020 Residential Energy Consumption Database (RECS, final release, June 2023) has recently been extended by Jackson Associates to include whole-building and seven end-use 8,760 hourly kW loads and emissions data for each of the 18,400+ households in its national survey.
See MAISY RECS Energy Consumption, Hourly Loads and Emissions Databases for a review of these new database capabilities and features including a sample database.

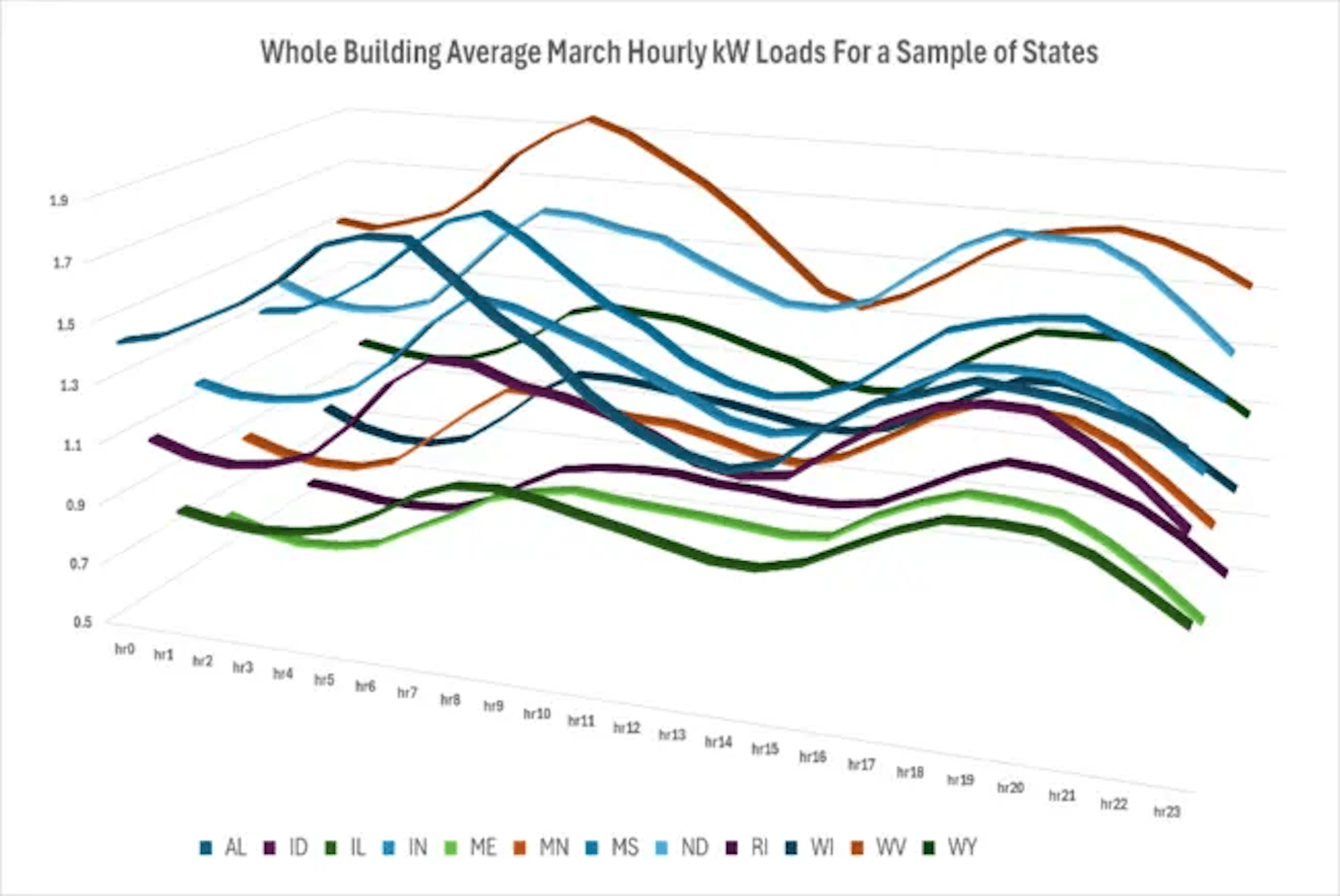

State Hourly Loads. The extended survey includes state identifiers for each household providing state-level comparisons of energy use, hourly loads, and household characteristics. Significant diversity exists in state-average residential kW loads profiles reflecting variations in household income, demographics, appliance holdings, climate, other factors and potential impacts of smart grid and demand response programs. The following chart of state average March whole building residential loads illustrates this diversity. Average household kW demand varies by more than a factor of two across states while evening peaks are greater than morning peaks in about half the states.

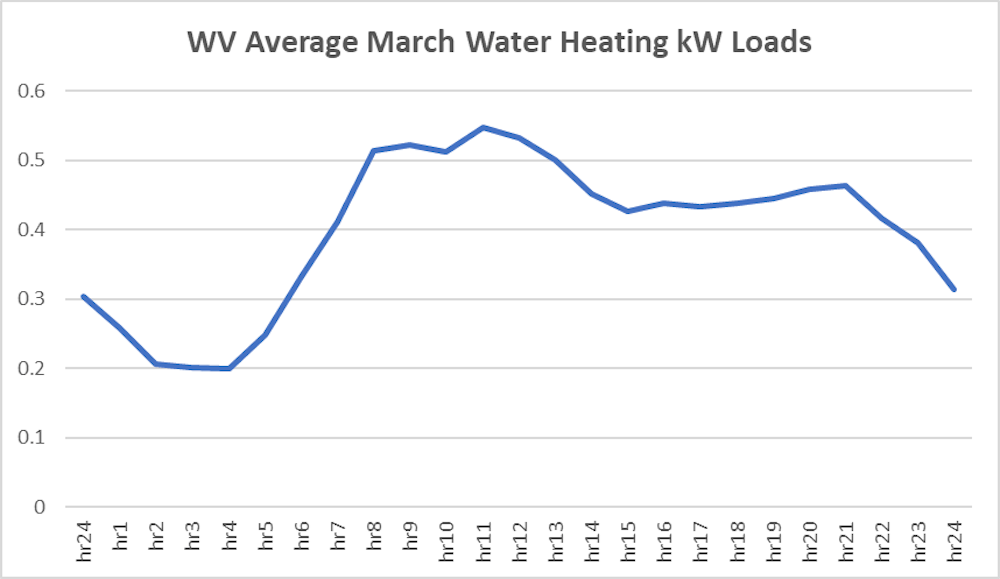

The previous chart shows relatively smooth load profiles for monthly average whole building residential loads. Monthly average hourly loads also reflect relatively smooth end-use load profiles as indicated by March average water heating load profiles for West Virginia households in the chart below. This chart suggests that an early morning potential demand response program has the potential to reduce demand by only about 0.1 kW (0.55 – 0.45 kW) per household, a relatively small gain for a potentially expensive system-wide program.

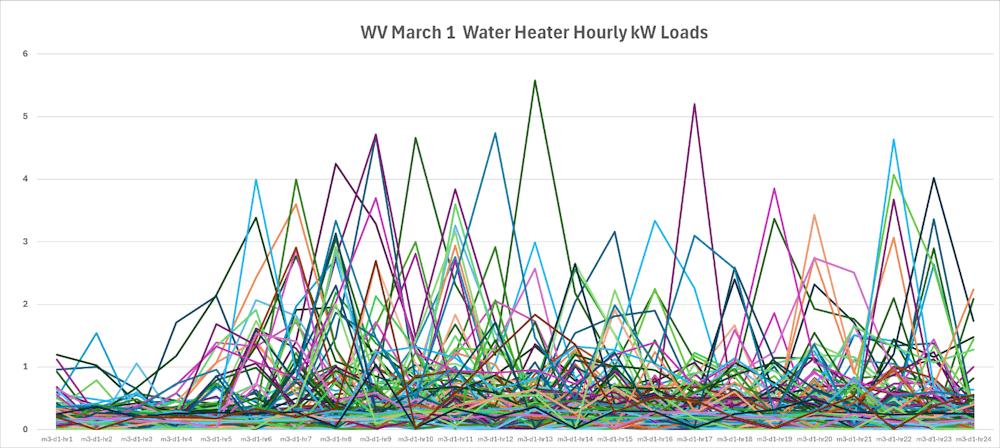

However, drilling down to individual household water heating load profiles in the extended WV database shows a considerably larger potential impact for a program targeting households with early morning water heating loads greater than 1 kW. Identifying a smaller target population with larger potential program savings can turn a cost-ineffective program into a program that saves money for both the utility and utility customers.
Extended MAISY RECS Hourly Load databases include demographic, income, and other characteristics for each household providing an opportunity to identify customer characteristics correlated with larger than average peak morning water heating use. These customer characteristics can then be used to target high-value potential water heating program participants and to better inform utility planning and smart grid/demand response initiatives.
Hourly load data extensions for each RECS household are provided by Jackson Associates using a nearest neighbor machine learning process that matches RECS household characteristics with characteristics from a MAISY Database of ACTUAL metered hourly loads. Heating and air conditioning energy use and hourly loads for each record are adjusted to reflect typical meteorological year weather data using DOE EPLUS engineering analysis. A sample MAISY RECS Hourly Load Database provides additional insight on these extended database capabilities.
