AÂ Power System Stabilizer (PSS)Â is a device that is used to improve the stability of a power system. It is typically used in conjunction with automatic voltage regulators (AVRs) to maintain the voltage stability of a power system. PSSs are designed to detect changes in the power system's frequency and voltage and to adjust the AVR's output accordingly.
Power System Stabilizers (PSSs) are used to improve the dynamic stability of generators in a power system by providing additional stabilizing signals to the automatic voltage regulator. The PSS provides a supplementary input signal to the excitation system of the generator controller to enhance the damping of electromechanical oscillations.
Tuning off a PSSÂ can have significant impacts on the stability of a power system. Without a PSS, the AVR may not be able to respond quickly enough to changes in the power system's frequency and voltage, which can lead to instability and even blackouts. However, there may be situations where tuning off a PSS is necessary, such as during maintenance or testing.
The tuning of a PSSÂ involves adjusting the PSS's parameters to achieve the desired damping of the system. Proper tuning ensures that the PSS is effective in providing stabilizing signals and improves the power system's overall stability.
The tuning of a Power System Stabilizer (PSS)Â is a process of adjusting the parameters of the PSS to ensure that it provides the desired level of damping to the power system. The damping provided by the PSS is critical to maintaining the stability of the power system, particularly during disturbances such as faults or sudden changes in load.
The tuning process involves adjusting the PSSÂ parameters based on the system's response to disturbances. The goal is to achieve the desired level of damping without causing excessive oscillations or instability in the power system. The tuning process typically involves a combination of simulation studies and field testing to ensure that the PSS is properly calibrated.The specific tuning parameters for a PSS will depend on the characteristics of the power system, including the generator and excitation system. In general, the tuning process involves adjusting the gain, time constants, and lead-lag parameters of the PSS to achieve the desired level of damping.
It is important to note that the tuning of a PSS is a complex process that requires specialized knowledge and expertise. Improperly tuned PSS can lead to instability and even blackouts in the power system. Therefore, it is critical to work with experienced professionals to ensure that the PSS is properly tuned and calibrated.
How Power System Stabilizer (PSS) works?

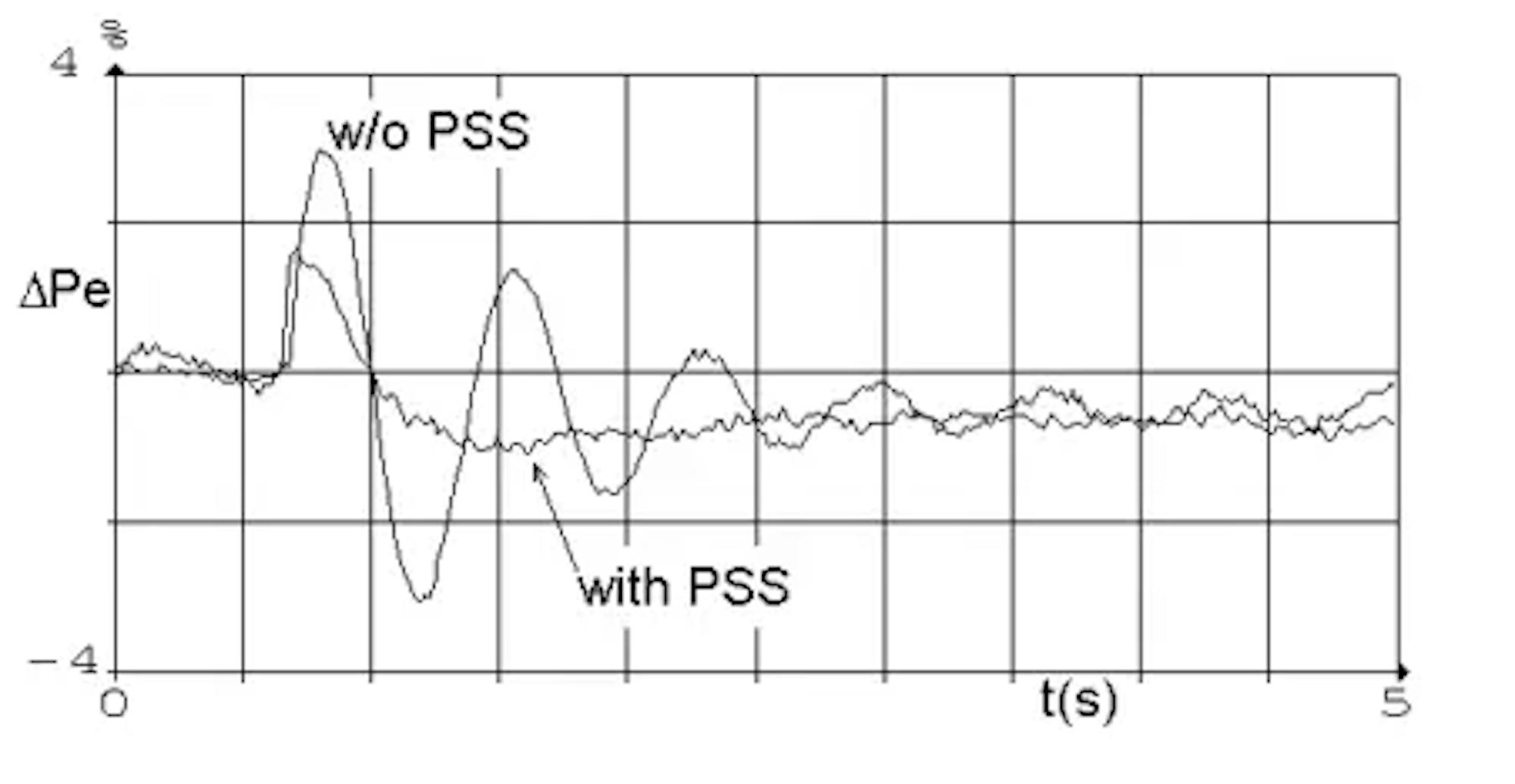

It is achieved by modulating the generator excitation so as to develop components of electrical torque in phase with rotor speed deviation. The PSS thus contributes to the enhancement of small-signal stability of power systems.
Benefits:
- Improve damping of the system
- The dynamic stability of the system is improved
- Reduced power losses.
In summary, power system stabilizers are important devices that help maintain the stability of power systems. While turning off a PSS can have significant impacts on the stability of a power system, there may be situations where it is necessary to do so.
Here are the steps involved in tuning a PSS:
1. Identify the oscillation mode:Â Identify the dominant oscillation mode in the system that needs stabilizing. One of the commonly used methods for identifying the oscillation mode is the modal analysis.
2. Select PSS type:Â Select the appropriate type of PSS to be used based on the generator and system characteristics. The most common types of PSS are lead-lag and washout PSS.
3. Select tuning parameters:Â Determine the tuning parameters, which include gain, time constant, and washout coefficient. These parameters need to be optimized to provide the desired level of damping for the identified oscillation mode. There are various tools available for PSS tuning, such as MATLAB, PSCAD, or PTI software.
4. Conduct a simulation:Â Run a simulation to verify the performance of the PSS. The simulation should include the PSS, generator, excitation system, and the power system. Various operating conditions should also be simulated to ensure that the PSS provides stable performance in different system conditions.
5. Field testing:Â After simulation testing, the PSS should be tested in the field to confirm its effectiveness. Field testing should be done under various system operating conditions to ensure the PSS's stability and effectiveness.
6. Fine-tuning:Â Fine-tune the PSS if necessary, based on the results of field testing, to ensure its effectiveness.
Tuning of PSSs is a complex task and requires expertise and experience in power system analysis and control. Proper tuning of PSSs is critical to ensuring that power systems operate reliably and avoid instability and blackouts.
There are several techniques for tuning Power System Stabilizers (PSS), including:
1. Trial and error method:Â This involves adjusting the PSS parameters based on the response of the power system to different disturbances. The parameters are adjusted until the desired level of damping is achieved.
2. Frequency response method:Â This involves analyzing the frequency response of the power system and adjusting the PSS parameters to provide the required damping at the critical frequencies.
3. Model-based tuning:Â This involves using mathematical models of the power system to determine the optimal PSS parameters for the desired level of damping.
4. Optimization-based tuning:Â This involves using optimization techniques to find the optimal PSS parameters that minimize a certain objective function, such as the time-domain performance or the frequency response.
The choice of tuning technique depends on the complexity of the power system, the available data, and the desired level of accuracy. It is important to note that the tuning of a PSS is a complex process that requires specialized knowledge and expertise. Therefore, it is critical to work with experienced professionals to ensure that the PSS is properly tuned and calibrated
