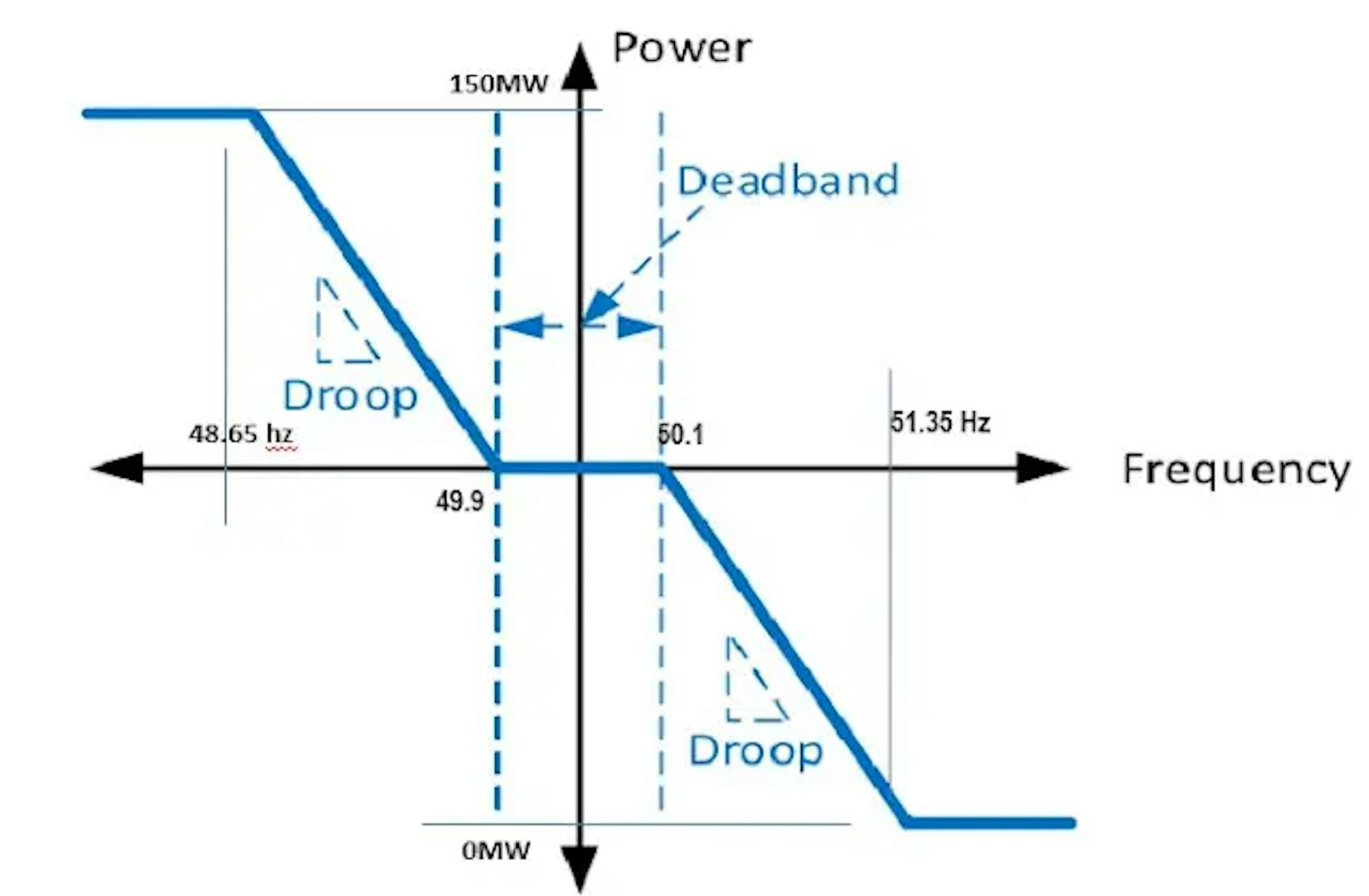

Droop is a control mechanism used in power generators to share the load between multiple generators. The droop level is the amount of frequency deviation from the nominal frequency that a generator will allow before it starts to increase or decrease its power output.
Droop action is a control strategy used in power generation systems to regulate the output of multiple generators that are connected in parallel. In this control strategy, the generators are set to operate at slightly different frequencies, and the output of each generator is adjusted based on the difference between its frequency and the reference frequency.
The droop action control strategy is based on the principle that the generator with the lowest frequency will have the highest load, and the generator with the highest frequency will have the lowest load. This is because the generator with the lowest frequency will be producing less power than the other generators, and the load will be distributed among the other generators. Similarly, the generator with the highest frequency will be producing more power than the other generators, and the load will be reduced on that generator.
The droop action control strategy is achieved by adjusting the speed governor of each generator. The speed governor controls the fuel input to the generator, and by adjusting the fuel input, the output of the generator can be adjusted. The speed governor is set to adjust the output of the generator based on the difference between its frequency and the reference frequency. The reference frequency is the desired frequency of the power system, typically 50 or 60 Hz.
The droop action control strategy is beneficial in power generation systems because it allows for the sharing of load among multiple generators. This improves the efficiency of the system and reduces the risk of overloading any individual generator. Additionally, the droop action control strategy is simple and reliable, making it a popular choice for power generation systems.
DROOP LEVELS
Droop 1 is a 100% droop level, which means that the generator will decrease its power output by 1% for every 1 Hz decrease in frequency from the nominal frequency.
Droop 2 is a 50% droop level, which means that the generator will decrease its power output by 0.5% for every 1 Hz decrease in frequency from the nominal frequency.
Droop 3 is a 33.3% droop level, which means that the generator will decrease its power output by 0.33% for every 1 Hz decrease in frequency from the nominal frequency.
Droop 4 is a 25% droop level, which means that the generator will decrease its power output by 0.25% for every 1 Hz decrease in frequency from the nominal frequency.
Droop 5 is a 20% droop level, which means that the generator will decrease its power output by 0.2% for every 1 Hz decrease in frequency from the nominal frequency.
IMPORTANCE OF GENERATOR DROOP LEVEL
Generator droop levels are important because they help maintain a stable frequency in the power grid by allowing generators to adjust their power output based on changes in frequency. This helps prevent overloading of generators and ensures a reliable power supply.
The droop level is the amount of frequency deviation from the nominal frequency that a generator will allow before it starts to increase or decrease its power output. The lower the droop level, the more sensitive the generator is to frequency changes, and the faster it responds to load changes. However, setting the droop level too low can cause instability in the power grid. Therefore, it is important to choose an appropriate droop level based on the characteristics of the power grid and the generators in use.
The droop level is important because it helps maintain a stable frequency in the power grid by allowing generators to adjust their power output based on changes in frequency. This helps prevent overloading of generators and ensures a reliable power supply.
Conclusion: droop action is a control strategy used in power generation systems to regulate the output of multiple generators that are connected in parallel. The droop action control strategy is based on the principle that the generator with the lowest frequency will have the highest load, and the generator with the highest frequency will have the lowest load. The droop action control strategy is achieved by adjusting the speed governor of each generator, and it allows for the sharing of load among multiple generators, improving the efficiency and reliability of the power system.
