A Tale of Two Utilities
Springfield gets its energy from wind, solar, and a coal power plant. The community has had an unseasonably warm spring, and a major storm is on its way.
In a Springfield neighborhood, the Jones household received power from Field Electric Utility, which recently implemented a new grid-edge sensing AMI platform. Across the street, the Smith household is served by Spring Energy, a neighboring utility that has not yet upgraded their grid or meters.
The Jones family has all electric appliances, as well as an electric vehicle with a Level 2 charger. On a hot day they receive a targeted text alert from Field Electric stating, “power outage likely. non-critical connected devices will power down. please stay alert for further updates.” The Jones family has taken advantage of energy management apps provided by the utility that work in tandem with demand management devices operated by the utility. The utility is also able to see loading conditions on all of its circuits and apply smart load balancing schemes. The Jones family signed up for a load management program that automatically controls high-use appliances. Similar load control events occur through the affected area with only the necessary amount of load shed to avoid an outage. Electric load is strategically reduced, while critical devices have remained powered.
Across the street, the Smiths have many of the same appliances and devices, but Spring Electric lacks the ability to identify load sources or automatically reduce demand on its circuits. Spring Energy is experiencing the same demand and supply issues as Field Electric, but they do not have the technology to reduce demand, re-direct supply, and avoid an outage.
During the next few hours, the Joneses notice the cycling of the air conditioner (and other comfort devices) but are otherwise able to use power in their home. The Smiths lose power until the demand event is over. Meanwhile, after nightfall, the Joneses are back to full power. Spring Energy customers are asking why their neighbors on Field Electric did not lose power.
Background
Why now?
Maintaining a reliable and resilient electricity grid has never before been as challenging for the utility industry. An immediate problem for generators and distribution utilities is integrating new energy resources in a way that preserves a reliable base load, to keep the lights on. Scheduled retirements of generation assets are stretching reserve capacity in some regions of the country. Latest forecasts[1] from the North American Electric Reliability Corporation (NERC) point to resource inadequacy as a risk factor for bulk power system reliability. In addition to delivery system upgrades, utilities require more grid flexibility with real time grid management capabilities to address these issues.
National Grid is transforming its electric delivery systems to meet new demands on the system in a way that preserves reliable, affordable, and clean energy availability. Using an agile project management process to identify where, when, and how we deploy technology is a key part of the process, as is flexibility and adaptability.
Better together with an agile approach
National Grid has partnered with Landis+Gyr, Verizon, Oracle, Cisco, Sense, and Microsoft, using Scaled Agile Framework (SAFe) to govern the software development of our Advanced Metering Infrastructure (AMI) system. Using SAFe, the program team builds small functional pieces, releases to limited customer groups, tests in production to verify value and fit, and continuously improves. This way of working enables rapid delivery, managed costs, and maximum customer value.
The National Grid AMI platform is a system of integrations using application programming interfaces (APIs) for internal and external connections which bring energy consumption data through the company, to the customer, and is built-to-last adaptable for the future.
A key part of the next generation technology vision at National Grid is to build, but not overbuild, the networked components. To maintain future flexibility, upgradeable edge computing is used in conjunction with standards-based network protocols. Additionally, billing estimation calculators are decoupled from billing and accounting platforms.
Regulators also see the potential in the agile partner offerings. During the regulatory approval process in MA and NY, the regulator and stakeholder's concern was future technology potential. National Grid’s AMI solution can mitigate this risk through numerous measures, including how we experiment, test, and deploy new apps and use cases over time as the market evolves.
The Energy Transition
What is it?
As policy makers, regulators and utilities move forward with carbon reduction goals, a transition to electrification is at the forefront. Simply put, this means the use of clean energy to power vehicles (EVs) and consumer appliances for HVAC, water heating, and cooking.

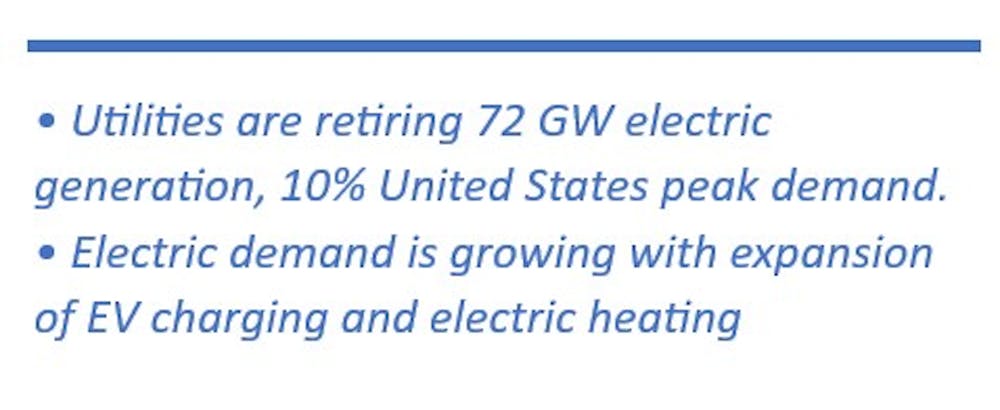

Simultaneously, utilities are in the process of retiring as much as 72 gigawatts of generation over the next eight years – roughly 10% of the United States peak demand. According to NERC, this is creating supply and demand imbalances in parts of the country, as demand for electricity accelerates while baseload capacity is being reduced. In addition to concerns about generation, the expansion of EV charging stations for homes, businesses, and fleet vehicles will require infrastructure upgrades to adequately support additional loads.
Demand for energy that exceeds supply often leads to a power outage, and when tied to an extreme weather event (such as Winter Storm Uri) can create public safety issues and adverse economic conditions that last well beyond the event.
Preemptively addressing these weaknesses in the power grid requires infrastructure upgrades and access to real-time information. National Grid is investing in smart grid technology to improve system planning, predictive analytics, and load balancing capabilities. Adding the grid edge sensing found in new smart meter platforms provides high resolution data on each circuit, which helps inform infrastructure improvements.
An Adaptive Grid
Utilities have commonly relied upon substation monitors or distribution devices downline to measure power quality, detect faults, and process information on grid conditions. But the rise of two-way power flows from distributed energy resources and significant loads appearing on a circuit overnight require grid edge data to properly monitor and react. The data available from first-generation AMI meters, while useful, presented a historical picture of what had happened on grid, but was incapable of providing real-time situational awareness or automated decision-making at the grid edge.
The Landis+Gyr Revelo electric metering platform separates traditional metrology from edge processing and grid sensing functions, providing additional security for the metering network and the headroom to continually analyze high-resolution waveform data for load disaggregation and anomaly detection.
Applied to the challenges of situational awareness and real-time intervention, waveform data that is immediately processed at the grid edge, combined with machine learning capabilities, provides tools for both the utility and the consumer to manage energy demand and/or distributed energy resource (DER) generation in a way that is verifiable and meaningful.
The key to building an adaptive grid is granular information combined with distributed intelligence on the system. On the grid side of the meter, waveform anomalies created by vegetation issues, failing transformers, switches, or insulators all present a unique waveform signature that can be used to pinpoint trouble spots before outages occur. On the consumer side, high resolution data supports automated demand management, energy efficiency, and DER optimization. Pattern detection capabilities provide power quality metrics that can be acted upon at the grid edge the moment intervention is needed.
System Integration
The field network connects meters using Wi-SUN Alliance’s Field Area Network protocol, providing a secure IPv6 mesh covering the NG service area.
Data comes directly from specialized applications at various points from grid-edge to substation. These specialized applications (grid apps) are quite similar to mobile apps and can be developed in Java. Edge software developer kits (SDKs) enable developers to either convert existing software to an edge app hosted on the meter, or to create an app to address a specific utility need. Energy companies deploy and manage apps using an “app store” concept for vetting and approving apps before they are ported to the edge processor in the meter. App capabilities help extend the lifecycle of hardware assets by allowing them to adapt to future business cases as they arise.
National Grid’s technology integration strategy utilizes a modular platform that can be customized as needed, supported by a broad base of vendor relationships to create a “best fit” environment for applications and idea generation. Traditional interval data generated by AMI can be blended with household data and weather information, then accessed through the platform’s APIs and SDKs, allowing additional National Grid partners to enhance their end-customer experiences around solar and DER adoption, smart home technologies, marketplaces, and even not-yet-imagined vendor offerings that AI is starting to enable.
The Consumer Equation
For consumers, the energy transition feels like moving from a cellphone to a smartphone. Installing smart meters (AMI), edge intelligence, and apps for the home realizes the vision of the “smart home” giving every customer control of their energy use. This control shields the customer from the risk of soaring energy prices through demand pricing rates with affordable baseload limits.

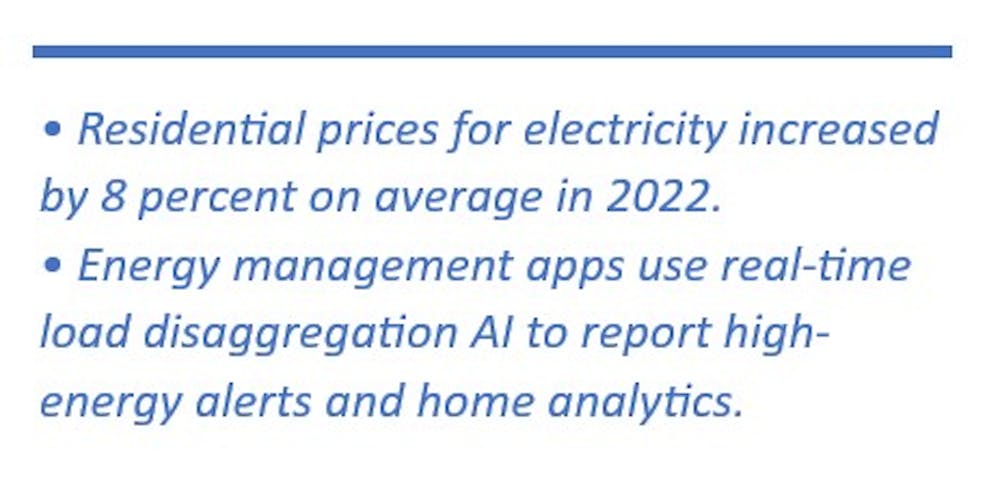

Customers see proven savings based on timing of energy use and AMI disaggregation information. Advanced guidance will lead customers to optimal rate decisions considering different time of use (TOU) rates with forecasted energy use. Insights are delivered across multiple channels with a combination of introductory, weekly, and post-bill timing. Insights include peak period disaggregation, educating customers about peak time energy use broken out by appliance (EV charging, cooling, water heating, and dryer use), informing adjustments to reduce peak rate costs and adopt behavior changes.
National Grid is also the first utility to offer the Sense real-time energy monitoring app to all customers, with costs covered in the base customer service fee. The app monitors waveform signatures of appliances and other home loads, along with machine learning, to accurately provide immediate load disaggregation at the grid edge. This information is then made accessible on a customer’s mobile phone. Future use cases include an alert for appliances that are not running at peak efficiency (i.e. “check engine light” for your air conditioner). This data helps partners to better serve all National Grid customers, regardless of income, who might benefit from energy optimization programs or devices, reducing energy burden and enabling all to complete the energy transition regardless of their financial situation.
Bottom-line, this enables the customer to control their energy use and moves the utility into the role of energy advisor. And it’s equitable, helping all customers, especially those of highest need.
[1] NERC raises North American power system reliability flags as demand could outstrip supply, 13 Dec 2023 [link]

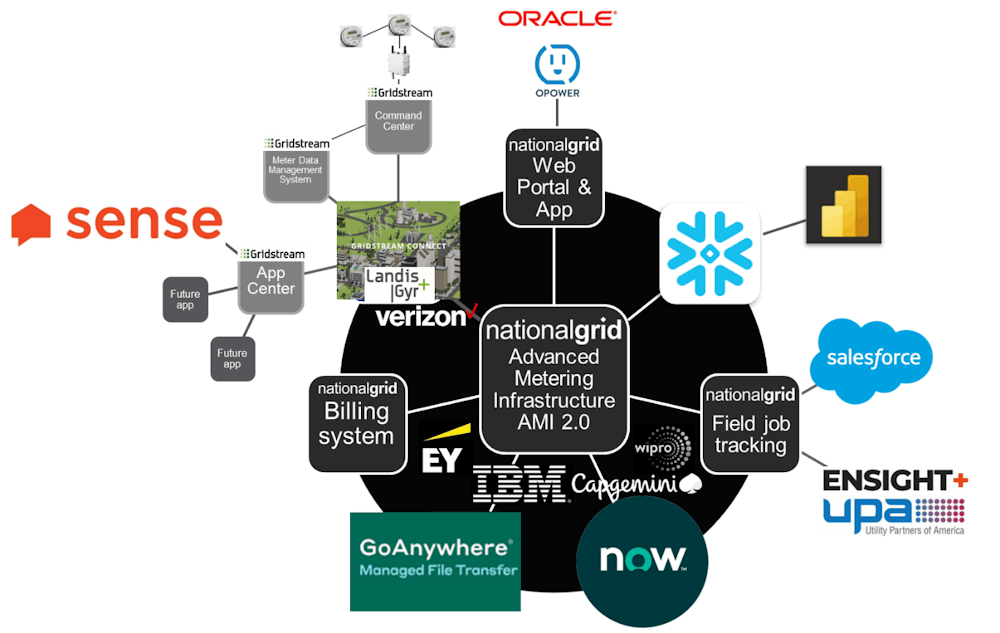

National Grid, Advanced Meter Infrastructure (AMI) integrations visual example:
