🎬 Upload and Processing – The Real Action Behind the Screen
Let’s continue and dive deep into the key steps of Vegetation Management — where the real action begins.
To bring it to life, imagine this:
Use Case: Transmission Line Vegetation Monitoring
Drone-mounted LiDAR scans 250 km of transmission corridor in 3 days (vs. 15 by foot patrol).
AI detects 1,200 potential encroachments and auto-prioritizes 90 for immediate action.
When the drones return with hours of aerial footage, the story moves from the skies to the servers — where the real work unfolds.
The collected data — high-resolution RGB imagery, LiDAR point clouds, GPS coordinates, and sometimes infrared layers — is uploaded to a cloud-based AI analytics platform.
Here, terabytes of raw data are transformed into structured, usable insights.
🎞️ Scene 1: The AI Editing Studio-Where Raw Data Becomes Smart Data
Think of this as the post-production suite. The system automatically synchronizes drone imagery with positional data to create a 3D digital twin of the transmission corridor.

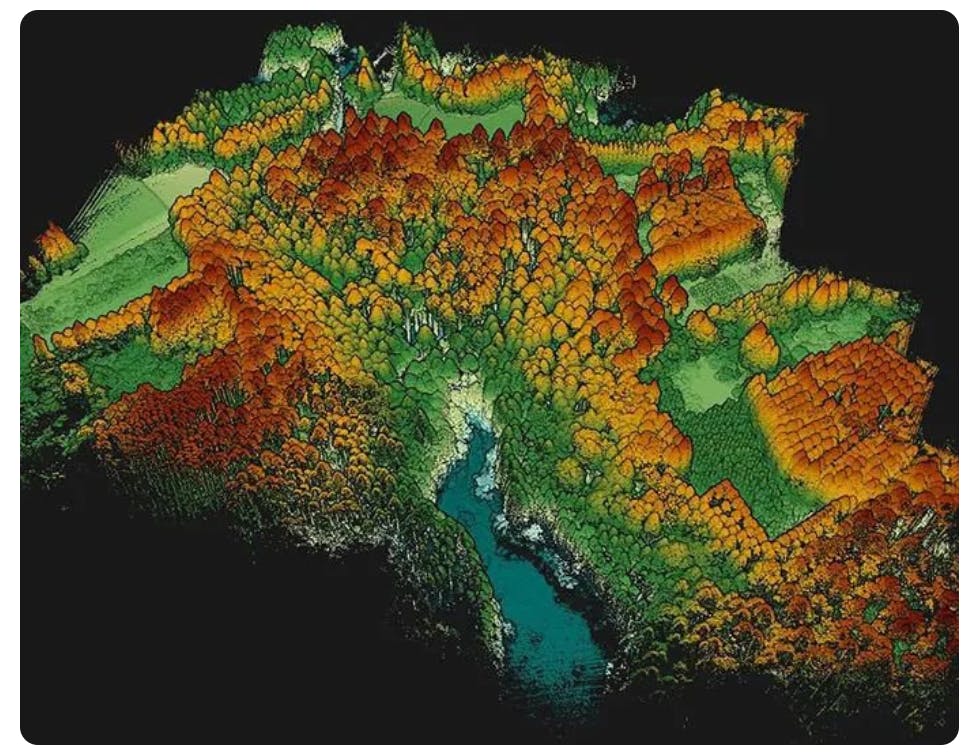

LiDAR fusion: merges 3D point clouds with visual images to capture depth, elevation, and object contours.

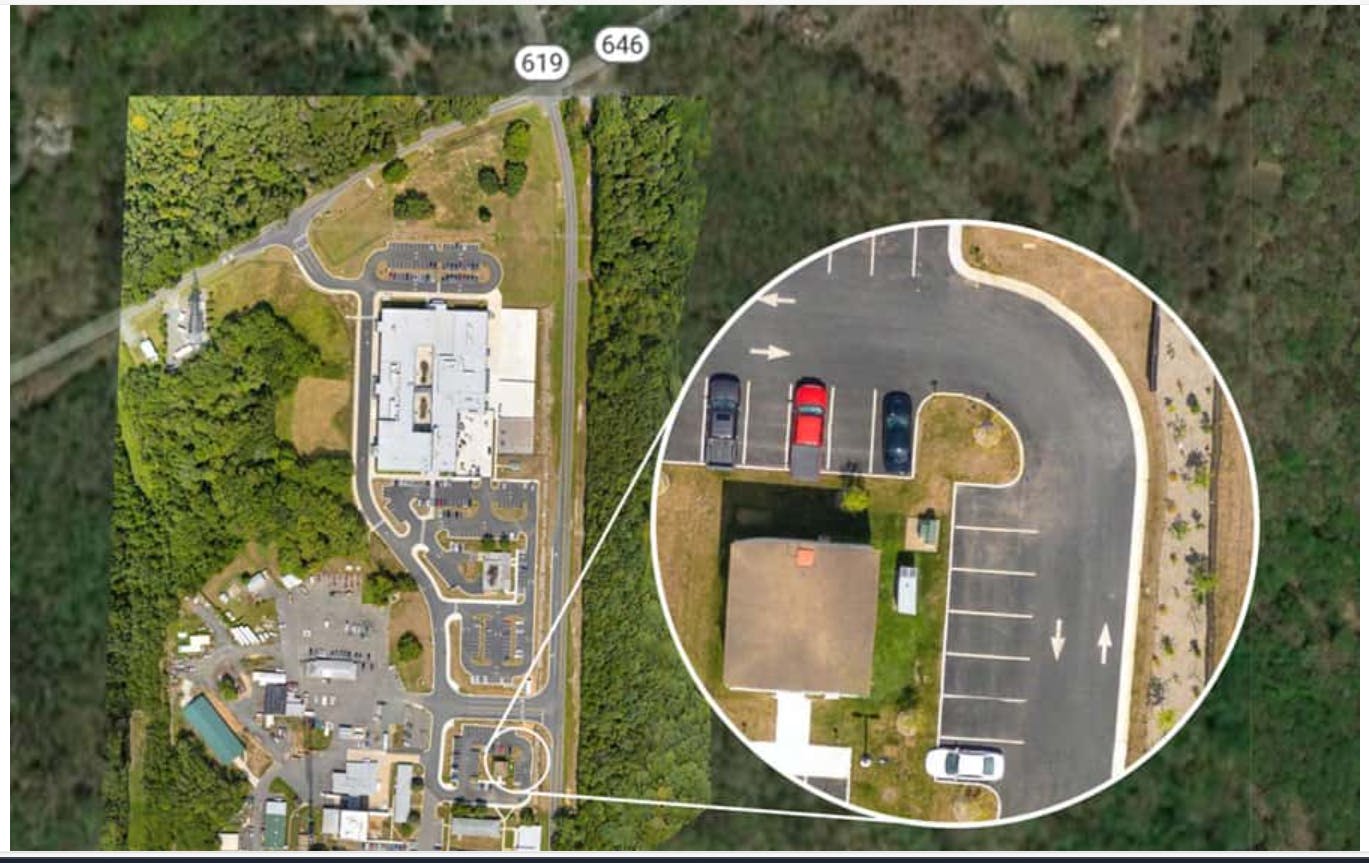

Orthomosaic creation: stitches thousands of overlapping drone images into a single, geo-referenced map — where every tree, tower, and wire aligns perfectly in place.
This step ensures the visual and spatial accuracy required for risk detection in later stages.
Put simply, an orthomosaic is like Google Earth, but way sharper. It is a large, map-quality image with high detail and resolution made by combining many smaller images called orthophotos.
🧠Scene 2: Computer Vision at Work- The Sharp-Eyed Editor
Once the “studio” is ready, the AI editor gets to work — powered by machine learning and deep learning.
It runs multiple models to detect, classify, and assess potential threats:
Object detection identifies towers, conductors, insulators, and vegetation.
Semantic segmentation (analyzes every pixel to distinguish between ground, tree, or wire.
Distance computation models use 3D geometry from LiDAR to measure vegetation clearance from conductors with centimeter-level precision.
####Semantic segmentation is a computer vision task that assigns a class label to pixels using a deep learning (DL) algorithm. It is one of three sub-categories in the overall process of image segmentation that helps computers understand visual information####
This is where raw drone footage becomes intelligent insight — pinpointing exactly which branches pose a threat and which areas are safe.

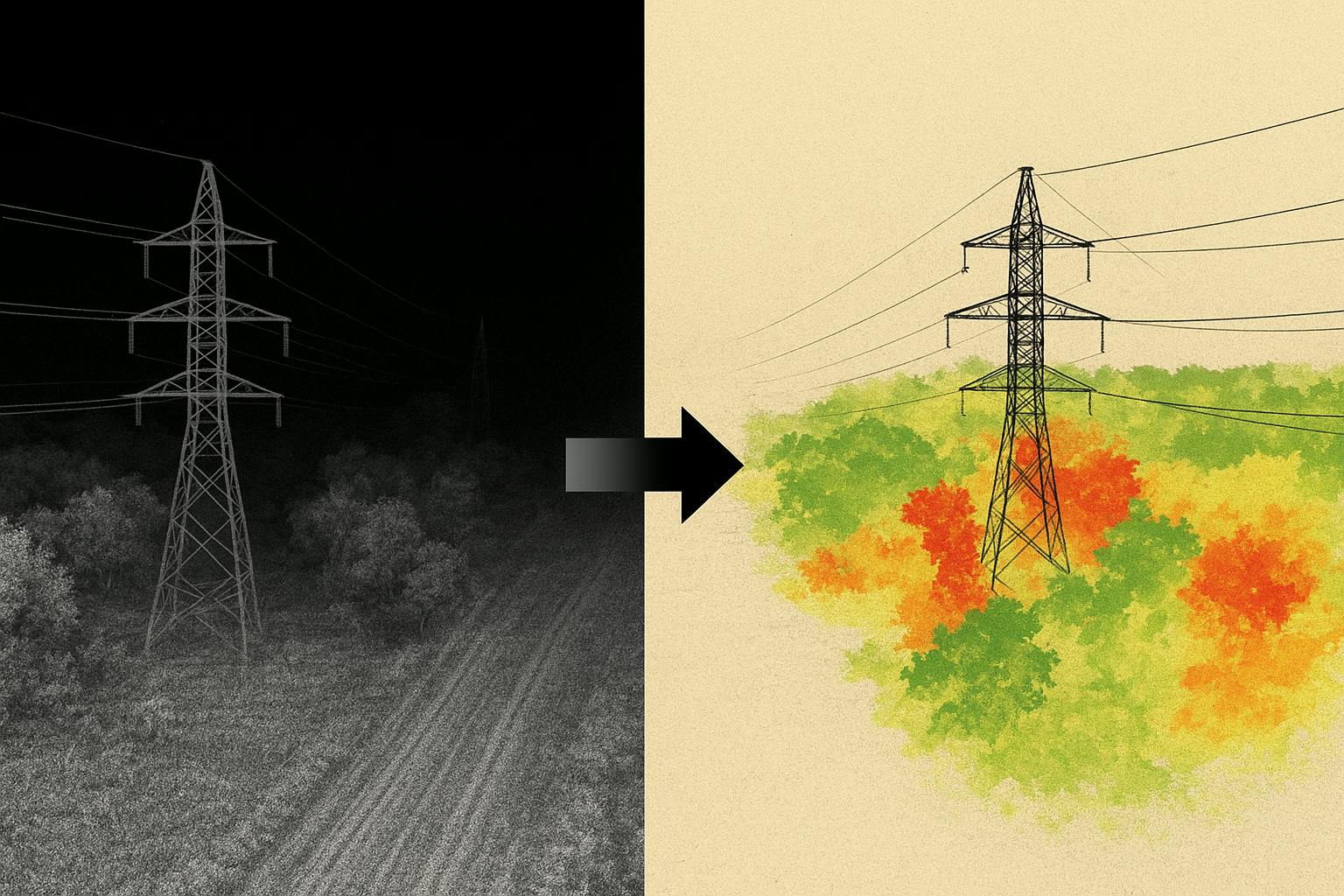

Visual idea: an illustration of a 3D LiDAR point cloud turning into a risk heatmap overlay.”
