Introduction
Microgrids (MGs) are increasingly recognized as critical components of modern smart grids, providing a flexible, self-sufficient energy system that integrates renewable and conventional energy sources along with storage solutions. With the rapid evolution of technologies like the Internet of Things (IoT) and advanced control strategies, microgrids are becoming more intelligent, reliable, and sustainable. This article explores the key concepts, control strategies, and monitoring systems that underpin microgrid operations, highlighting the main contributions from recent research in the field.
Microgrid Overview and Importance

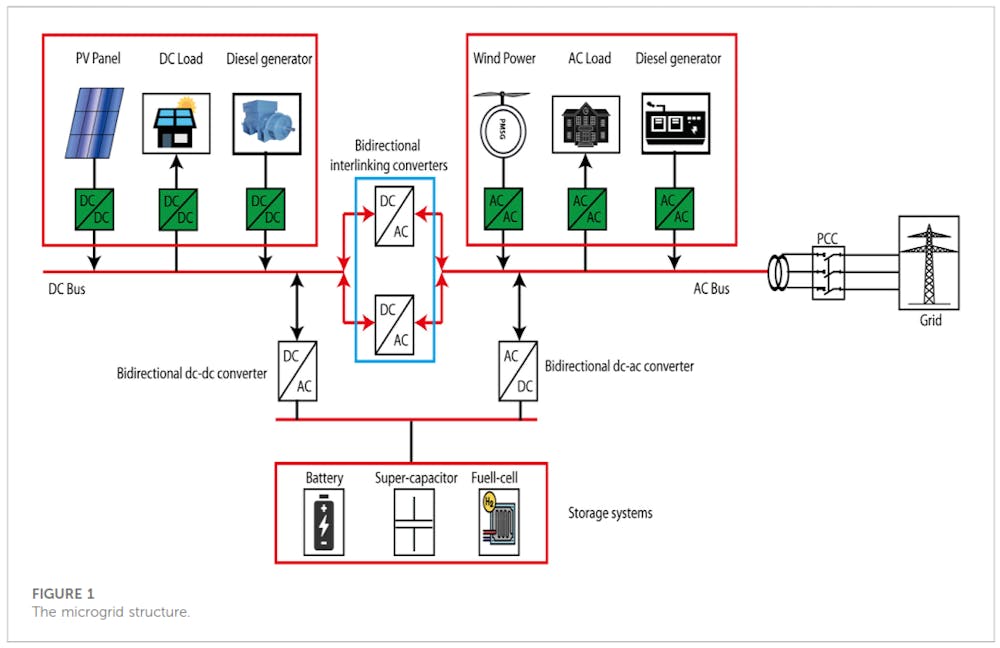

Microgrids are small-scale power grids designed to operate independently or in conjunction with the main utility grid. They comprise distributed energy resources (DERs), which include renewable sources like solar and wind, as well as conventional generators and storage systems. The ability of MGs to switch between grid-connected and islanded modes makes them vital for enhancing power quality, stability, and sustainability, especially during grid disruptions.
Microgrids offer significant benefits, such as:
- Reduced Greenhouse Gas Emissions: By integrating renewable energy sources, MGs contribute to lower carbon footprints.
- Enhanced Reliability and Resilience: The ability to operate independently from the main grid during outages ensures a continuous power supply to critical loads.
- Decentralized Energy Supply: MGs reduce the strain on central grids, lower transmission losses, and support localized energy generation and consumption.
Microgrid Control Strategies
Effective microgrid operation hinges on robust control strategies that manage the balance between power generation and consumption. These strategies are broadly classified into conventional, advanced, and intelligent control techniques.
- Conventional Control Techniques:
- Primary Control: Focuses on real-time stabilization of voltage and frequency at the local level.
- Secondary Control: Aims to correct any deviations in voltage and frequency caused by primary controls, enhancing power quality.
- Tertiary Control: Manages the power exchange between the microgrid and the main grid, optimizing economic and operational efficiency.
- Advanced Control Techniques:
- Adaptive Control: Adjusts control parameters in real-time to cope with dynamic changes in the microgrid environment, such as varying renewable energy outputs.
- Model Predictive Control: Uses predictive models to optimize control actions over a future time horizon, enhancing operational efficiency.
- Robust and Optimal Control: These methods ensure system stability and performance despite uncertainties and disturbances in the microgrid.
- Intelligent Control Techniques:
- Artificial Neural Networks (ANNs): Mimic human brain function to improve decision-making and system adaptability, ensuring stable microgrid operations under varying conditions.
- Fuzzy Logic Controllers: Provide flexibility and robustness in control by handling uncertainties and non-linearities, crucial for managing complex energy flows in microgrids.
Microgrid Monitoring Systems
Monitoring systems are integral to the efficient operation of microgrids, providing real-time data and control capabilities. These systems are increasingly leveraging IoT technologies, SCADA, and cloud computing to enhance their performance.
- IoT-Enabled Monitoring:
- IoT devices play a pivotal role in monitoring microgrid components by collecting and analyzing data from various sensors (e.g., voltage, current, temperature).
- IoT allows for real-time decision-making, enhancing the microgrid's ability to respond to changing conditions promptly.
- SCADA Systems:
- SCADA (Supervisory Control and Data Acquisition) provides a robust framework for data collection, monitoring, and control across microgrid components. It integrates hardware and software to manage operations efficiently, from DERs to consumer loads.
- Cloud Computing:
- Cloud-based monitoring platforms facilitate scalable data storage and analysis, offering advanced capabilities for remote monitoring and control. This approach enhances the flexibility and scalability of microgrid management systems, making them suitable for a wide range of applications.
Challenges and Future Directions
While microgrids offer numerous advantages, several challenges remain in optimizing their operation:
- System Modeling: Accurate modeling is crucial for efficient planning and operation, especially given the stochastic nature of renewable energy sources.
- Advanced Control Development: Continued innovation in control strategies, such as adaptive and predictive controls, is needed to improve the stability and efficiency of microgrids.
- Integration of Renewables: The low inertia of DC microgrids due to high renewable penetration poses voltage control challenges that require advanced solutions.
Future Opportunities:
- The integration of large-scale decentralized resources and energy storage systems can further enhance microgrid flexibility.
- Advanced monitoring and control technologies, including AI and blockchain, can offer improved security, efficiency, and adaptability in energy transactions and DER operations.
Conclusion
Microgrid technologies are at the forefront of the transition towards a more sustainable and resilient energy future. By integrating advanced control strategies and monitoring systems, microgrids can optimize the use of renewable resources, enhance energy security, and reduce operational costs. The continued development and adoption of innovative technologies will be key to overcoming existing challenges and unlocking the full potential of microgrids in the global power landscape.
Reference:
Albarakati, A. J., Boujoudar, Y., Azeroual, M., Eliysaouy, L., Kotb, H., Aljarbouh, A., Khalid Alkahtani, H., Mostafa, S. M., Tassaddiq, A., & Pupkov, A. (2022). Microgrid energy management and monitoring systems: A comprehensive review. Frontiers in Energy Research, 10, 1097858. https://doi.org/10.3389/fenrg.2022.1097858
