As per ENTSO-E, the ampacity of existing lines can be achieved up to 200% depending on the weather conditions.
The power industry landscape is evolving rapidly, fuelled by the integration of Renewable Energy Resources (RES). The efficient and reliable operations of the grid are more critical than ever, with increasing demand and complexity. The need for innovative solutions is clear. Dynamic Ratings provide a means to optimize the use of existing infrastructure.
What Are Dynamic Ratings?
Traditionally, transmission lines have been operated with static thermal ratings, based on conservative assumptions about the worst-case weather conditions, typically the hottest days. These ratings determine the maximum current a line can safely carry without overheating, commonly known as ampacity. However, static ratings often lead to underutilization of the conductor's capacity since they don’t account for real-time conditions that could allow for higher power transmission without compromising safety.
Dynamic Line Ratings (DLR) provide an intelligent solution. By continuously monitoring environmental conditions—such as temperature, wind speed, and solar radiation—DLR systems adjust the line's ampacity in real time. This approach enhances the power flow capacity, potentially by 10% to 30% during favorable conditions, vis-a-vis static ratings. This dynamic approach allows for more efficient use of existing infrastructure.
The current-carrying capacity of a transmission line is primarily limited by the maximum allowable temperature of the conductor, which if exceeded, can cause excessive sagging or even permanent damage.
Dynamic Ratings, on the other hand, employ real-time data from sensors and weather stations to assess the actual thermal state of the conductor.
Why Dynamic Ratings Matter
1. Maximizing Existing Infrastructure: With DLR, utilities can enhance the capacity of their existing transmission infrastructure and avoid costly upgrades. This is particularly beneficial in regions where building new lines is challenging due to regulatory, environmental, or right-of-way constraints.
2. Integrating Renewable Energy: Renewable energy sources like wind and solar are inherently variable, creating fluctuations in power generation. DLR can help balance these fluctuations by enabling more flexible power flow management. Particularly DLR goes well with wind farm integration, as an increase in wind leads to more power infeed and can simultaneously have a cooling effect on transmission line conductors to enhance its ampacity.
3. Improving Grid Resilience: Real-time adjustments to transmission capacity also enhance grid resilience. During peak demand periods or emergencies, DLR can intermittently support the additional capacity needed to prevent blackouts or reduce the need for load shedding.
4. Reducing Congestion Costs: Grid congestion is a major problem resulting in inefficiencies and increased costs for utilities and consumers. By dynamically adjusting ratings, DLR can help alleviate congestion during peak demand periods and lessen the reliance on costly peaking power plants.
Underlying Technology

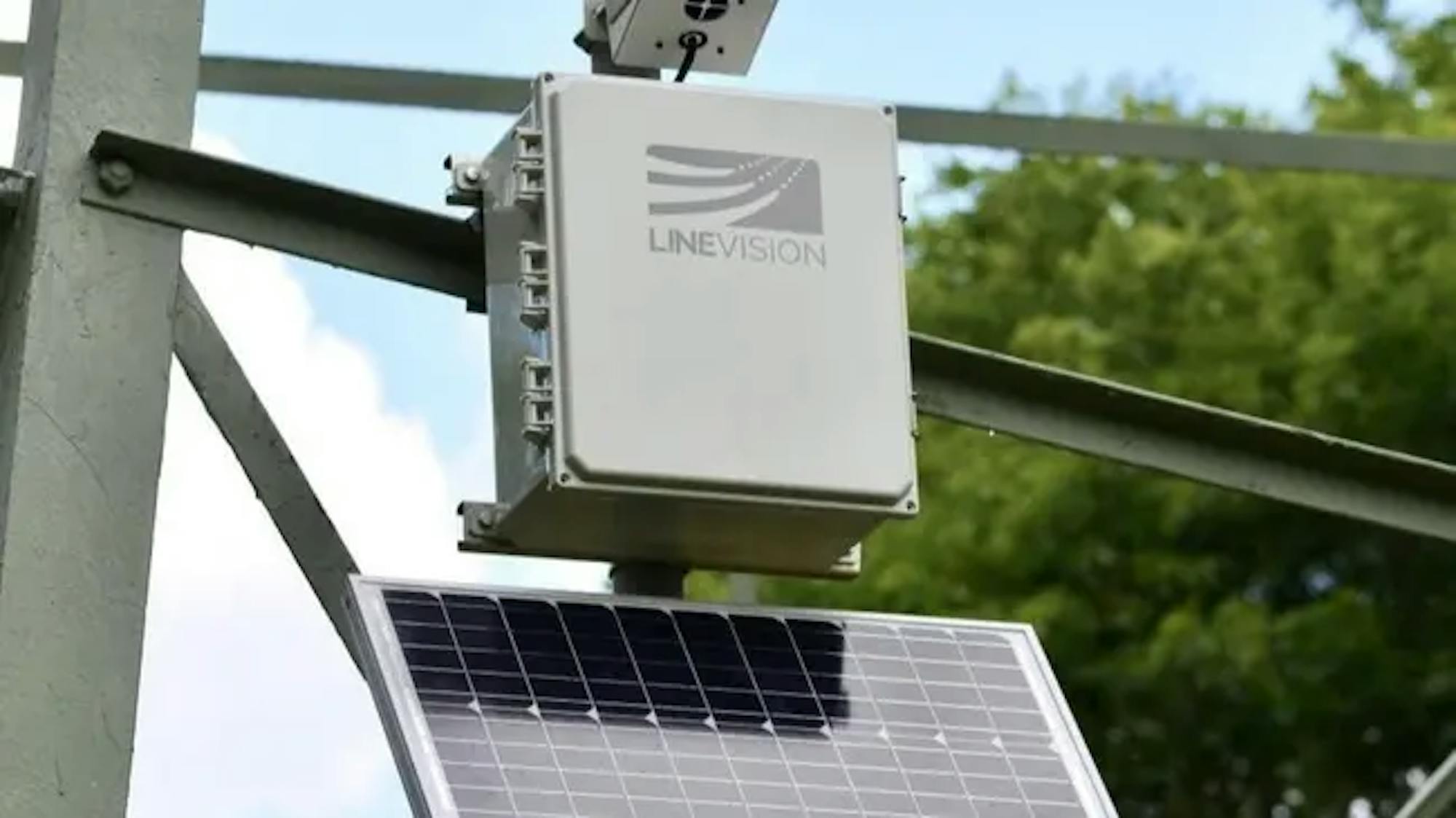

DLR systems typically consist of sensors placed along the transmission lines to monitor environmental conditions, conductor temperature, and line parameters, such as sag and tension. These sensors are connected to a central monitoring system (SCADA/EMS) that processes the data and adjusts the line ratings in real time.
Advances in IoT and AI have further enhanced DLR systems by enabling remote monitoring and predictive analytics. These technologies allow utilities to not only respond to current conditions but also anticipate future scenarios and optimize power flow accordingly
The Rise of Dynamic Ratings
As part of the European Union's Horizon 2020 research and innovation program, the FARCROSS (Facilitating Regional Cross-Border Electricity Transmission) project is focused on improving the cross-border electricity network across Europe. It deployed the use of DLR as one of the key technologies which accelerated the integration of ‘clean energy’ to the European grid while reducing the need for costly infrastructure upgrades.
FERC Order No. 881 requires transmission providers, including ISOs/RTOs to implement Ambient Adjusted Ratings (AARs) on the transmission lines over which they provide transmission service unless otherwise subject to an exception.
In the U.S., some utilities are adopting DLR to manage congestion in areas with high renewable energy penetration, particularly in regions with abundant wind resources. The ability to dynamically adjust ratings has led to more efficient grid usage and reduced the curtailment of renewable energy sources.
Challenges with DLR Implementation
While the benefits of Dynamic Ratings are evident, widespread adoption still faces several challenges. These challenges include the upfront cost of implementation, the necessity for standardized protocols, and the integration of DLR systems with existing infrastructure and grid management tools.
Since DLR enables transmission lines to operate beyond static ratings, corresponding adjustments must be made to the control and protection systems' setpoints to prevent false operations or malfunctions. Additionally, the maintenance schedule should be adjusted since lines will generally operate at higher ratings than usual, potentially causing faster deterioration of the conductors.
There could also be some limitations to existing grid infrastructure such as transformer capacities which can also limit the power transfer capacity. Additionally, traditional grids are often overdesigned to include safety margins and accommodate future upgrades, which may limit the applicability of dynamic ratings in these systems.
However, as the power industry continues to prioritize flexibility, resilience, and sustainability, the case for DLR will only grow stronger.
