In the realm of modern lighting, energy efficiency is a paramount concern, driven by rising energy costs, environmental sustainability goals, and the global push for net-zero carbon emissions. Direct Current (DC) lighting emerges as a transformative solution, offering a compelling advantage in energy efficiency by eliminating the inefficient process of converting Alternating Current (AC) power to DC power. This fundamental shift in power delivery not only reduces energy losses but also aligns seamlessly with the growing adoption of renewable energy sources and smart building technologies. By leveraging DC lighting, manufacturers, integrators, and end-users can achieve significant energy savings, lower operational costs, and contribute to a more sustainable future.

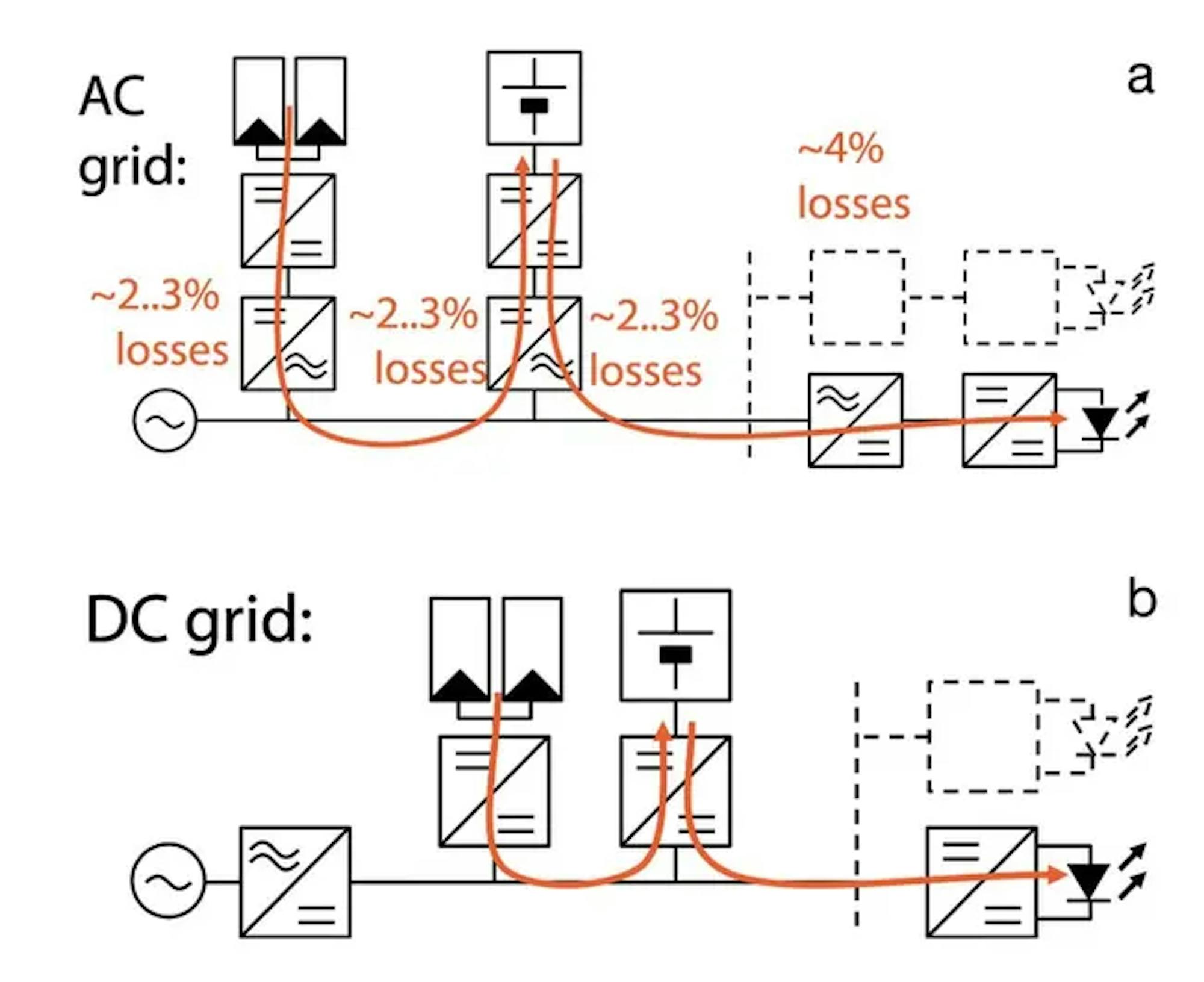

The Core Benefit: Eliminating AC-to-DC Conversion Losses
Most modern lighting technologies, particularly Light Emitting Diodes (LEDs), inherently operate on DC power. LEDs require a stable, low-voltage DC input to function, typically in the range of 24VDC to 48VDC, though some systems may operate at higher voltages like 125VDC for industrial applications. In traditional AC-powered lighting systems, the incoming AC power from the grid (e.g., 120VAC or 240VAC) must be converted to DC power using rectifiers and power supplies, a process that introduces energy losses. These losses occur due to heat dissipation, inefficiencies in transformers, and the inherent limitations of power electronics, with typical AC-to-DC conversion efficiencies ranging from 80% to 90%. This means that 10% to 20% of the input energy is wasted before it even reaches the LED driver or light fixture.
DC lighting systems bypass this conversion step entirely. By delivering DC power directly to the lighting fixtures, the energy losses associated with AC-to-DC conversion are eliminated, resulting in greater electrical efficiency. This direct approach ensures that a higher percentage of the input energy is utilized for illumination, reducing overall power consumption. Furthermore, DC systems can be paired with DC-based renewable energy sources, such as solar panels or battery storage, which naturally produce or store DC power, further enhancing system efficiency by avoiding additional conversions.
Broader Implications of Energy Efficiency
The energy efficiency of DC lighting has far-reaching implications across residential, commercial, and industrial applications. By reducing energy waste, DC lighting lowers electricity bills, making it an attractive option for cost-conscious facility managers and homeowners. In large-scale installations, such as office buildings, warehouses, or data centers, even small improvements in efficiency can translate into substantial savings over time. Additionally, the reduced energy demand contributes to lower greenhouse gas emissions, supporting sustainability goals and compliance with energy efficiency standards like LEED, ENERGY STAR, or local building codes.
DC lighting also aligns with the rise of smart buildings and the Internet of Things (IoT). Many smart devices, sensors, and control systems operate on low-voltage DC power, creating opportunities for integrated DC microgrids that power both lighting and other building systems efficiently. By centralizing DC power distribution, buildings can minimize conversion losses across multiple systems, creating a cohesive and energy-efficient infrastructure.
Practical Examples of DC Lighting Efficiency
To illustrate the energy efficiency example benefits of DC lighting, consider the following practical examples across different applications:
Solar-Powered Off-Grid Lighting for Remote Areas:
Scenario: A rural community in a developing region lacks access to the AC power grid but has abundant sunlight. A DC lighting system powered by solar panels is installed to illuminate homes, schools, and community centers.
Implementation: Solar panels generate 24VDC, which is stored in batteries and delivered directly to 24VDC LED fixtures. No inverters or AC-to-DC converters are needed, ensuring that nearly all the solar energy is used for lighting.
Efficiency Benefit: By avoiding AC-to-DC conversion (which could waste 10-20% of energy), the system maximizes the use of limited solar resources. For example, a 100W solar panel can power a 10W LED fixture for 10 hours per day, compared to only 8 hours with an AC-based system losing 20% efficiency.
Impact: The community benefits from reliable, cost-effective lighting, with lower battery and panel requirements, reducing installation and maintenance costs.
Commercial Office Building with DC Microgrid:
Scenario: A modern office building integrates a DC microgrid to power LED lighting, occupancy sensors, and IoT devices, with energy supplied by a combination of rooftop solar panels and a battery storage system.
Implementation: The building uses 48VDC LED fixtures controlled by 24VDC occupancy sensors (powered via a DC-DC converter). A centralized DC power supply distributes 48VDC to lighting zones, eliminating the need for individual AC-to-DC drivers at each fixture.
Efficiency Benefit: Traditional AC-powered LED systems might lose 15% of energy in conversion (e.g., 85% efficient drivers). In contrast, the DC system operates at near 100% efficiency for power delivery to the fixtures. For a 100,000 sq ft office with 500 fixtures consuming 20W each, this could save approximately 150,000 kWh annually (assuming 15% loss reduction and 3000 operating hours per year).
Impact: The building owner reduces energy costs by thousands of dollars annually and achieves higher LEED certification points, while occupants benefit from a responsive, sensor-controlled lighting system.
Industrial Warehouse with High-Voltage DC Lighting:
Scenario: A large warehouse uses 125VDC LED high-bay fixtures to illuminate a 200,000 sq ft facility, powered by a DC bus fed by a combination of grid-tied rectifiers and battery backup for peak shaving.
Implementation: The 125VDC fixtures are paired with 24VDC motion sensors (powered by a step-down converter) to turn lights on only in occupied zones. The DC bus eliminates the need for AC-to-DC conversion at each fixture, unlike traditional AC-powered high-bay systems.
Efficiency Benefit: If AC-to-DC conversion losses are 12% for a traditional system, switching to DC saves 12W per 100W fixture. For 200 fixtures operating 12 hours per day, this results in 86,400 kWh saved annually (200 fixtures Ă— 12W Ă— 12 hours Ă— 300 days).
Impact: The warehouse reduces energy costs significantly, extends fixture lifespan due to stable DC power, and minimizes maintenance by using fewer power conversion components.
Residential Smart Home with DC Lighting:
Scenario: A homeowner installs a DC lighting system in a smart home, powered by a 24VDC power supply connected to a hybrid solar-battery system.
Implementation: Recessed LED strips and downlights operate on 24VDC, controlled by DC-compatible occupancy sensors and smart home hubs. The system integrates with DC-powered IoT devices, such as security cameras and thermostats, sharing the same power infrastructure.
Efficiency Benefit: By eliminating AC-to-DC conversion (e.g., 10% loss), the system ensures that nearly all battery-stored energy is used for lighting and devices. For a home with 50W of lighting load, this saves 5W per hour, or 15 kWh annually (assuming 8 hours daily use).
Impact: The homeowner enjoys lower electricity bills, extended battery runtime during outages, and a streamlined smart home ecosystem with fewer power adapters.
Challenges and Considerations
While DC lighting offers significant energy efficiency benefits, there are challenges to consider:
Infrastructure Costs: Retrofitting existing AC buildings for DC lighting requires new wiring, power supplies, and fixtures, which can be costly upfront. However, long-term energy savings often justify the investment, especially in new construction.
Component Availability: DC-compatible sensors, relays, and fixtures are less common than AC equivalents, particularly for high-voltage DC (e.g., 125VDC). Careful component selection and vendor partnerships are essential.
Standardization: DC power systems lack universal standards for voltage and connectors, requiring careful system design to ensure compatibility.
Safety: Higher DC voltages (e.g., 125VDC) require DC-rated switches and breakers to manage arcing, which is more persistent in DC than AC.
Despite these challenges, advancements in DC technology, such as Power over Ethernet (PoE) lighting and USB-C power delivery, are making DC systems more accessible and cost-effective. Partnerships with manufacturers like Mean Well (for DC power supplies) or Wattstopper (for DC sensors) can streamline implementation.
Future Outlook
The energy efficiency of DC lighting positions it as a cornerstone of the sustainable building movement. As renewable energy adoption grows—solar, wind, and battery storage all produce or store DC power—DC lighting systems will become increasingly prevalent. Emerging standards, such as the EMerge Alliance’s 24VDC and 380VDC specifications for commercial buildings, are paving the way for broader adoption. Additionally, the integration of DC lighting with smart grids and energy management systems will enable dynamic load balancing, further enhancing efficiency.
For DC lighting manufacturers and integrators, the energy efficiency advantage is a powerful selling point. By showcasing real-world savings and aligning with green building certifications, DC lighting can capture market share in sectors like commercial real estate, industrial facilities, and off-grid applications. Educational campaigns and pilot projects can demonstrate the tangible benefits, encouraging wider adoption.
Conclusion
The energy efficiency of DC lighting, achieved by eliminating AC-to-DC conversion losses, is a game-changer for the lighting industry. By delivering power directly to LED fixtures, DC systems maximize the use of every watt, reducing energy consumption, operational costs, and environmental impact. Practical examples—from solar-powered rural lighting to smart office microgrids—demonstrate the versatility and impact of DC lighting across diverse applications. As technology advances and DC infrastructure becomes more standardized, the adoption of DC lighting will accelerate, illuminating a path toward a more efficient and sustainable future. For manufacturers and integrators, embracing DC lighting is not just a technical choice but a strategic opportunity to lead in the evolving landscape of energy-efficient illumination.
